State of the art Automated Manufacturing Facility of PV Crystalline Panel

Agrawal Renewable Energy Private Limited (AREPL) provides an optimum and clean solution for electricity generation from Solar PV modules, AREPL has in-house module manufacturing facility incorporating on fully automated Italian imported plant and technologies and offers standards & custom design modules. The unique, fully automated production process ensures highest level of precision and consistent production quality. Modules are manufactured in clean and dust free environment and are designed to sustain harsh environmental conditions. We use only the best raw materials procured from renowned suppliers’ worldwide to ensure a quality end product.
  • street light
  • new_solar_lantern

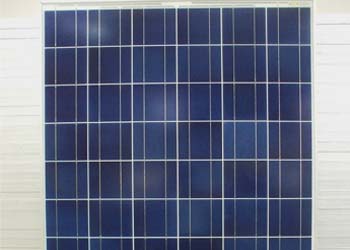

  • DSCF8310

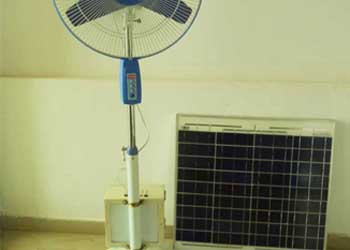

  • b

Features of DHOOP series PV Module

  • Technology – Multi Crystalline Silicon Solar Cells.
  • Wide range of modules from 3 Wp to 300 Wp.
  • IEC 61215, IEC 61730 and IEC 61701certified.

  • State of the Art Automated Manufacturing Facility.
  • Positive power tolerance of modules.
  • Raw Materials of highest quality

  • Weather proof junction box with easy interconnection arrangement.
  • Anodized aluminum frame.

Module Technical Specification

Model No.

No. of cells

Module Dimensions (mm)

Module Wattage

Voc       (Volt)

Isc            (Amps)

Vmax (Volt)

Imax (Amps)

Download Data Sheet

Dhoop 0603

18

200 x 185 x 22 06V,03Wp

10.5

0.37

8.2

0.37

Dhoop 0605

18

300 x 185 x 22 06V, 05Wp

10.5

0.62

8.2

0.61

Dhoop 1205

36

300 x 185 x 22 12V,05Wp

21

0.31

16.4

0.31

Dhoop 1210

36

305 x 340 x 22 12V,10Wp

21

0.62

16.4

0.61

Dhoop 1220

36

500 x 340 x 22 12V,20Wp

21

1.24

16.4

1.22

Dhoop 1237

36

610 x 655 x 34 12V,37Wp

21

2.32

16.4

2.26

Dhoop 1250

36

610x 655 x 34 12V,50Wp

21

3.14

16.4

3.05

Dhoop 1275

36

890 x 655 x 34 12V,75Wp

21

4.72

16.4

4.6

Dhoop 12120

36

1325 x 655 x 42 12V,120Wp

21

7.6

16.4

7.32

Dhoop 200

60

1662 x 992 x 42 24V, 200Wp

36

8

29

6.91

Dhoop 210

60

1662 x 992 x 42 24V,210Wp

36.2

8.2

29

7.26

Dhoop 220

60

1662 x 992 x 42 24V,220Wp

36.5

8.45

29

7.59

Dhoop 230

60

1662 x 992 x 42 24V,230Wp

36.7

8.62

29

7.93

Dhoop 240

60

1662 x 992 x 42 24V,240Wp

37

8.8

29

8.28

Dhoop 250

60

1662 x 992 x 42 24V,250Wp

37.2

8.85

29

8.63

Dhoop 280

72

1950 x 992 x 45 30V,280Wp

44

8.9

36

7.78

Dhoop 300

72

1950 x 992 x 45 30V,300Wp

44.4

9.2

36

8.33

Applications – The DHOOP Series Solar PV modules are used for Solar Appliances, Solar Water Pumping Systems, Off-grid rural applications, Grid connected systems, Roof-Top Systems, Telecom sites, etc.

Use nature; use AREPL to cater to all your power needs.

Applications - The DHOOP Series Solar PV modules are used for Solar Appliances, Solar Water Pumping Systems, Off-grid rural applications, Grid connected systems, Roof-Top Systems, Telecom sites, etc.
Use nature; use AREPL to cater to all your power needs.
